Assembly Tools Needed to Build Structures from an Aluminum Framing Kit

Published on

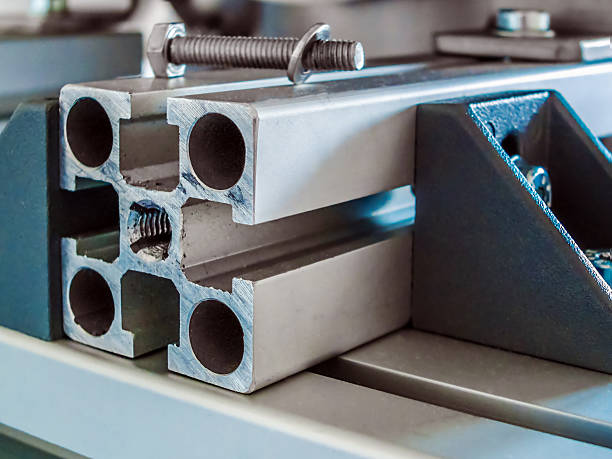

A modular frame goes together faster when the right tools are ready before assembly starts. Builders working with an aluminum framing kit usually need common hand tools, but accuracy still matters because crooked joints or loose fasteners can affect the whole structure. A basic setup can handle workstations, guards, carts, enclosures, and many other shop builds.

Hex Keys Handle Most Everyday Fastening

Hex keys are among the first tools used on T-slot framing because many brackets, connectors, and fasteners rely on socket-head screws. A good set in the correct sizes lets installers tighten joints without damaging the fastener heads. Ball-end versions help in awkward spots, although final tightening is better with a straight end so the tool seats fully.

A small ratcheting hex driver can speed up repetitive work on larger frames. With MiniTec Aluminum Framing, compatible hardware works with the profile system, so the correct driver size helps keep each joint consistent and avoids rounded sockets.

A Torque Wrench Keeps Connections Consistent

Hand-tight can mean something different to every installer. A torque wrench removes much of that guesswork by helping crews tighten fasteners to the recommended value for the hardware being used. This matters on extruded aluminum T slot systems because overtightening can damage threads or distort a connection, while undertightening may let a joint shift under vibration.

Torque control becomes more useful on machine frames, conveyor supports, and equipment bases that see repeated movement. Consistent clamping also makes repeated builds easier to reproduce.

Squares and Levels Keep the Frame Aligned

A framing square or machinist square is essential when profiles meet at right angles. Builders can check each corner before fully tightening the fasteners, then recheck after the structure is standing. Small errors at the base can grow across a tall enclosure or long workstation.

A spirit level adds another check once the frame is on the floor. Leveling feet can correct minor floor variation, while a straightedge helps spot rails that are sitting unevenly. MiniTec extruded aluminum framing is adjustable, but that flexibility works best when the base geometry starts out right.

Measuring Tools Matter Before Cutting or Drilling

Tape measures, steel rules, calipers, and layout markers all have a place around T slot extrusion work. A tape handles overall dimensions, while a steel rule or caliper helps with bracket spacing and accessory locations. Careful measurement matters when panels, doors, linear guides, or machine components must fit inside a finished opening.

Pre-cut profiles still need to be checked before assembly. Confirming lengths at the start is much easier than finding a mismatch after half the frame is built.

Saws and Deburring Tools Help With Field Adjustments

Pre-cut kits reduce fabrication, but shop changes still happen. A suitable saw with the correct blade can shorten aluminum framing material when a rail needs adjustment. Clean cuts matter because rough or angled ends can prevent profiles from sitting flush at a joint.

Deburring tools, files, and abrasive pads remove sharp edges after cutting. That step protects hands, helps end caps fit, and keeps chips from interfering with connectors. A clean profile end also gives a T slot aluminium extrusion assembly a more finished fit.

Clamps Make Large Assemblies Easier to Control

Clamps help when one person is building a wide frame or several profiles must stay aligned before tightening. Quick clamps can hold rails against a square, while corner clamps keep right-angle joints from moving as fasteners are installed. They are especially useful on worktables, guards, and large enclosure sections.

Temporary supports matter too. Sawhorses, assembly tables, or blocks can keep the frame at a comfortable height and reduce twisting while one side is still loose.

Power Tools Speed Up Repetitive Work

Cordless drivers save time when an aluminum framing kit includes many repeated fasteners. A low torque setting works best for initial assembly so the tool does not over-tighten the hardware. Final tightening can then be completed by hand or with a torque wrench.

Drills may be needed for custom accessories or mounting plates outside the standard slot-based system. Still, many brackets and accessories on modular framing attach without drilling through the profile. That keeps later changes easier and avoids unnecessary holes.

Good Assembly Starts With Compatible Parts

The best tool set cannot fix mismatched hardware or poorly planned connections. Builders get better results when profiles, fasteners, brackets, and accessories belong to the same system and the required tools are identified before work begins.

For shops sourcing a coordinated modular system, MiniTec Solutions supplies MiniTec Aluminum Framing components, compatible hardware, custom-cut profiles, and design assistance for structures built around practical assembly needs. That can be useful when a project requires more than loose extrusion and needs parts that can be assembled, adjusted, and serviced with standard shop tools.
